Accessories

Battery Standard/Longlife

Power for fast and safe commissioning of all RCT LEVELview Transmitters (Ex-Zone 1) | simply plug & play with Transmitter | replaceable at any time

Functionality

Functionality

The required transmitter can be activated simply by plugging it together with the battery pack or deactivated by disconnecting it. The battery pack can be exchanged and replaced very easily at any time: Remove the transmitter from the used battery pack – wait 30 seconds – plug the transmitter onto the new battery pack. All programmed information of the transmitter is retained even in the de-energized state.

Features

Features

Application: power supply for all RCT LEVELview Transmitters

Housing: robust, shock-proof, gas-tight, UV-resistant, fully encapsulated for Ex-Zone 1

Mounting: two magnets in the battery base for easy and quick mounting of the transmitter unit e.g. on the tank or tank cap

Battery Standard

Construction: fully encapsulated, ATEX zone 1, intrinsically safe version (II 2 G Ex iB IIB T4 Gb), contains alkaline batteries

Lifetime: two years depending on transmission interval

Battery Longlife – Power for extra long life

Construction: fully encapsulated, ATEX zone 1, intrinsically safe version (II 2 G Ex iB IIB T3 Gb), lithium technology

Lifetime: up to ten years depending on transmission interval

Combinations

Combinations

All LEVELview Transmitter:

  • Transmitter LEVELview.PRO.LPG
  • Transmitter LEVELview.PRO.OIL
  • Transmitter LEVELview.PRO.AQUA
  • Radio Transmitter LEVELview.BASIC.LPG
  • Radio Transmitter LEVELview.BASIC.OIL
  • Radio Transmitter LEVELview.BASIC.AQUA
Contact

Contact

Questions?
Call us or write to us:

T: +49 6462 419880
E: info@rct-monitor.de



Data Logger REMOTE PROFI GSM

Intelligent remote monitoring of up to 16 measuring points via Mobile and Web App

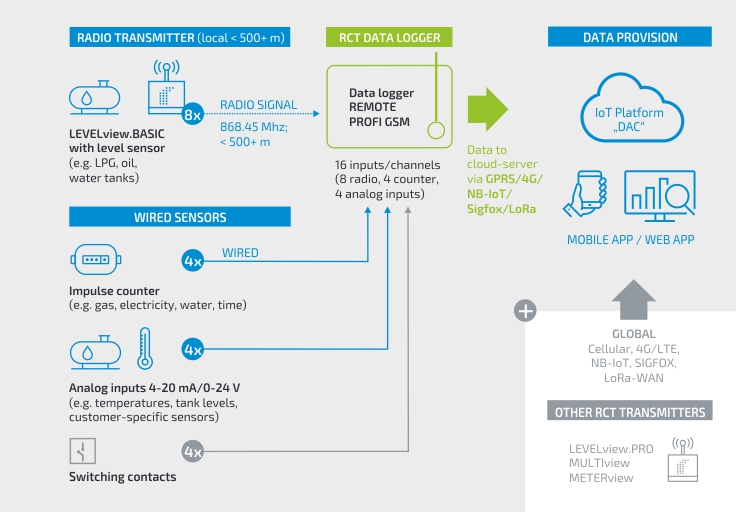

With RCT Data logger, information of up to 16 different tanks, meters and objects can be collected and processed locally by Radio Transmitters and wired sensors. The measured data then can be made available worldwide via GPRS/4G or NB-IoT/Sigfox/LoRa for web-based data management via Mobile App and Web App.

Functionality

Functionality

The data logger is a true all-rounder for simultaneous remote monitoring of various meters, tank levels, temperatures of the heating circuit, system malfunctions and much more. For example, the complete heating and building technology of a house, including external tanks, can be monitored remotely with one system. The data logger offers 16 channels for the acquisition of wired sensors and RCT Radio Transmitters (LEVELview.BASIC) in radio range up to 1,500 m. 4 meters with pulse output can be connected via cable. The data of all connected sensors and Radio Transmitters are stored in the data logger and sent to the RCT Webserver via GPRS/4G or NB-IoT/Sigfox/LoRa at regular intervals or when definable limits and alarms are reached. The measured values, meter readings, consumptions, alarms and system messages can be monitored at any time via the Internet using the Mobile App or Web App “RCT Monitor”. You receive a well-founded data basis for efficient energy controlling. Problems such as heating failure, unusual consumptions, temperature drop, empty tanks are detected at an early stage and enable fast targeted action and minimum downtimes.

Features

Features

Application: 16 channels for receiving different transmitters type LEVELview.BASIC (868.45 Mhz) and connection of wired sensors/contacts e.g. temperature sensors, impulse counters, level sensors, pressure probes, fault contacts and many more; data forwarding to cloud server

Power supply: connector plug (2-pole) 230 V / 50Hz

Sensors/channels: 16 channels for receiving different transmitters type LEVELview.BASIC (868.45 Mhz) and connection of wired sensors/contacts

Connection terminals: 4 x 3-pole for analog inputs (0-24 V/4-20 mA); 4 x 4-pole for impulse counters and alarm contacts

Programming: initial configuration at the factory or via PC and RCT software “Config-Profi-8”; configuration adjustments possible at any time via RCT Web App

Data transmission: depending on version GPRS/4G/NB-IoT/Sigfox/LoRa

Mobile phone card: standard SIM card; mobile phone provider freely selectable or RCT contract card

Data reception: RCT Web Server (cloud), data management via Mobile and Web App or individual solution

Cyclic messages: transmission interval freely selectable; transmission of recorded measured values, counter impulses, battery status ( Radio Transmitter), signal strength and system messages (last 24 measured values in one message)

Alarms: when definable limit values are reached (over/underrun), event/fault (switch contacts), empty battery ( Radio Transmitter), further indirect alarms via the Web App e.g. untypical consumption

Housing: ABS plastic housing for wall mounting, IP 54, protective insulation (EU protection class II), for indoor use

Combinations

Combinations

  • Radio Transmitter LEVELview.BASIC.LPG
  • Radio Transmitter LEVELview.BASIC.OIL
  • Radio Transmitter LEVELview.BASIC.AQUA
  • Pressure Probes
  • Capacitive Sensors
  • Antennas
Contact

Contact

Questions?
Call us or write to us:

T: +49 6462 419880
E: info@rct-monitor.de



Magnetic Base Antenna

For LEVELview Transmitters | easy to attach directly to the tank and to metal surfaces | replaceable

Functionality

Functionality

The magnetic base antenna is mounted upright on a metal surface. As a general rule: The larger the metal surface, the better the transmission power. For above-ground tanks, attach the antenna e.g. directly on the tank, for underground tanks outside the manhole e.g. on the manhole cover. Inside the manhole, the signal could be reduced by the metal enclosures. For unfavorable surrounding conditions, e.g. shielding elements such as reinforced concrete walls, further types and accessories are available (e.g. antenna cable extension, antenna that can be driven over).

Features

Features

Cable length: 1.2 meters

Connection: screw connection (SMA socket)

Mounting: flexible by magnetic base, external

Types

  • Transmitting Antenna 868 MHz Magnetic Base: Standard Antenna for Radio Transmitters LEVELview.BASIC
  • Transmitting Antenna GSM Magnetic Base: Standard Antenna for Global Transmitters LEVELview.PRO
  • Other versions: antenna cable extension, dipole antenna (traversable antenna), angle antenna
Combinations

Combinations

Alle LEVELview-Sender:

  • Transmitter LEVELview.PRO.LPG
  • Transmitter LEVELview.PRO.OIL
  • Transmitter LEVELview.PRO.AQUA
  • Radio Transmitter LEVELview.BASIC.LPG
  • Radio Transmitter LEVELview.BASIC.OIL
  • Radio Transmitter LEVELview.BASIC.AQUA
